6EP1322-1SH02 SİEMENS

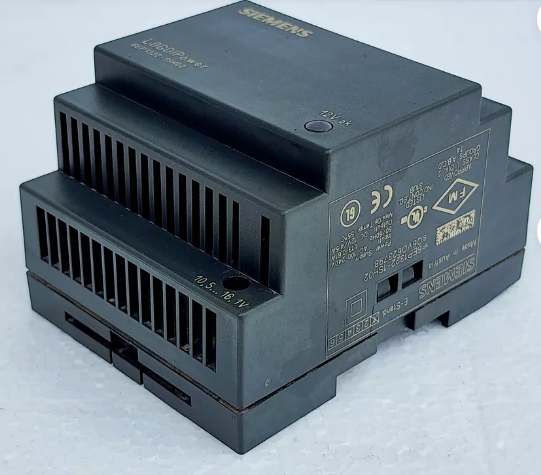

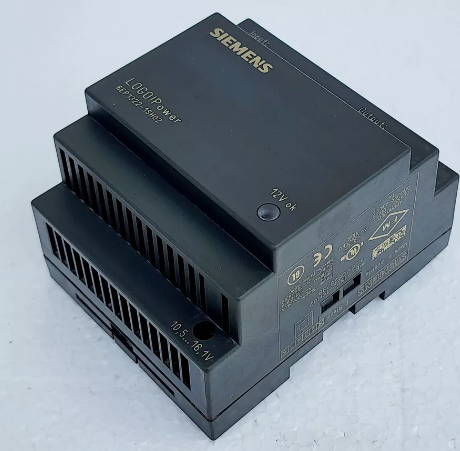

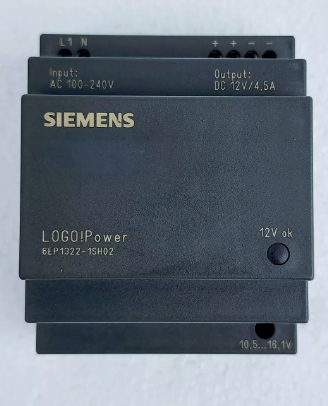

Siemens 6EP1322-1SH02 LOGO!Güç Güç Kaynağı 120-240VAC Giriş 4.5A/12VDC Çıkış

Input
Input 1-phase AC
Rated voltage value Vin rated 100 ... 240 V
Voltage range AC 85 ... 264 V
Wide-range input Yes
Overvoltage resistance 2.3 × Vin rated, 1.3 ms
Mains buffering at Iout rated, min. 40 ms; at Vin = 187 V
Rated line frequency 1 50 Hz
Rated line frequency 2 60 Hz
Rated line range 47 ... 63 Hz
Input current
● at rated input voltage 120 V 1.13 A
● at rated input voltage 230 V 0.61 A
Switch-on current limiting (+25 °C), max. 30 A
I²t, max. 3 A²·s
Built-in incoming fuse internal
Protection in the mains power input (IEC 898) Recommended miniature circuit breaker: from 16 A characteristic
B or from 10 A characteristic C

Output Controlled, isolated DC voltage
Rated voltage Vout DC 12 V
Total tolerance, static ± 3 %
Static mains compensation, approx. 0.1 %
Static load balancing, approx. 1.5 %
Residual ripple peak-peak, max. 200 mV
Residual ripple peak-peak, typ. 10 mV
Spikes peak-peak, max. (bandwidth: 20 MHz) 300 mV
Spikes peak-peak, typ. (bandwidth: 20 MHz) 40 mV
Adjustment range 10.5 ... 16.1 V
Product function Output voltage adjustable Yes
Output voltage setting via potentiometer
Status display Green LED for output voltage OK
On/off behavior No overshoot of Vout (soft start)
Startup delay, max. 0.5 s
Voltage rise, typ. 10 ms
Rated current value Iout rated 4.5 A
Current range 0 ... 4.5 A
Supplied active power typical 50 W
Parallel switching for enhanced performance Yes
Numbers of parallel switchable units for enhanced
performance
2
Efficiency
Efficiency at Vout rated, Iout rated, approx. 85 %
Power loss at Vout rated, Iout rated, approx. 10 W
Closed-loop control
Dynamic mains compensation (Vin rated ±15 %),
max.
0.2 %
Dynamic load smoothing (Iout: 10/90/10 %), Uout ±
typ.
4.2 %
Load step setting time 10 to 90%, typ. 20 ms
Load step setting time 90 to 10%, typ. 20 ms
Protection and monitoring
Output overvoltage protection Yes, according to EN 60950
Current limitation, typ. 5.9 A
Property of the output Short-circuit proof Yes
Short-circuit protection Constant current characteristic
Enduring short circuit current RMS value
● maximum 8 A
Overload/short-circuit indicator -
Safety
Primary/secondary isolation Yes
6EP1322-1SH02 Subject to change without notice
Page 2/
4
06/22/2018 © Copyright Siemens
Galvanic isolation Safety extra-low output voltage Uout acc. to EN 60950-1 and EN
50178
Protection class Class II (without protective conductor)
CE mark Yes
UL/cUL (CSA) approval cULus-listed (UL 508, CSA C22.2 No. 107.1), File E197259;
cURus-recognized (UL 60950, CSA C22.2 No. 60950), File
E151273
Explosion protection ATEX (EX) II 3G Ex nA IIC T3
FM approval Class I, Div. 2, Group ABCD, T4
CB approval Yes
Marine approval GL, ABS
Degree of protection (EN 60529) IP20
EMC
Emitted interference EN 55022 Class B
Supply harmonics limitation not applicable
Noise immunity EN 61000-6-2
Operating data
Ambient temperature
● during operation -20 ... +55 °C
— Note with natural convection
● during transport -40 ... +70 °C
● during storage -40 ... +70 °C
Humidity class according to EN 60721 Climate class 3K3, no condensation
Mechanics
Connection technology screw-type terminals
Connections
● Supply input L, N: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely
stranded
● Output +, -: 2 screw terminals each for 0.5 ... 2.5 mm²
● Auxiliary -
Width of the enclosure 72 mm
Height of the enclosure 90 mm
Depth of the enclosure 55 mm
Required spacing
● top 20 mm
● bottom 20 mm
● left 0 mm
● right 0 mm
Weight, approx. 0.25 kg
Product feature of the enclosure housing for side-byside mounting
Yes
Installation Snaps onto DIN rail EN 60715 35x7.5/15
6EP1322-1SH02 Subject to change without notice
Page 3/
4
06/22/2018 © Copyright Siemens
MTBF at 40 °C 1 419 239 h
Other information Specifications at rated input voltage and ambient temperature +25
°C (unless otherwise specified)
