6EP1334-2BA01 SİEMENS
6EP1334-2BA01 SITOP SMART 24 V/10 A, WITH PFC SITOP smart 240 W Stabilized power supply input: 120/230 V AC, output: DC 24 V/10 A Version with PFC https://sieportal.siemens.com/en-tr/search?scope=knowledgebase&Type=siePortal&SearchTerm=&SortingOption=CreationDateDesc&EntryTypes=all&Page=0&PageSize=20&ProductId=70995 https://www.yapmuh.com/urun-kategori/siemens
- Kategori :: Siemens, Güç kaynağı, Sitop
- Ürün Kodu :: 6EP1334-2BA01 SİEMENS
- Etiketler :: 6EP1334-2BA01 , https://www.yapmuh.com/urun-kategori/siemens , https://sieportal.siemens.com/en-tr/search?scope=knowledgebase&Type=siePortal&SearchTerm=&SortingOption=CreationDateDesc&EntryTypes=all&Page=0&PageSize=20&ProductId=70995 , https://www.yapmuh.com/icerik/hakkimizda
- Stok :: Stokta Var

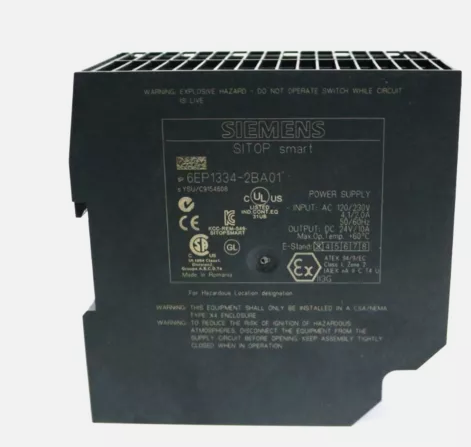

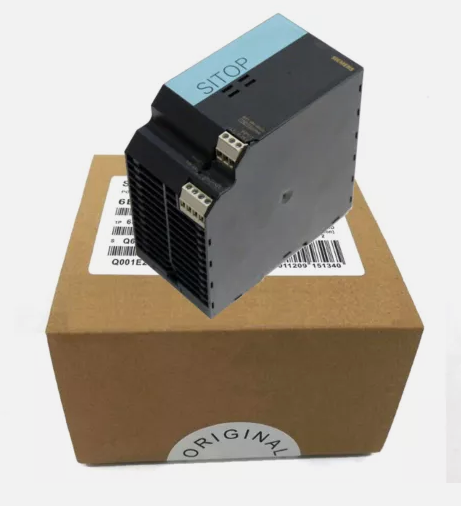

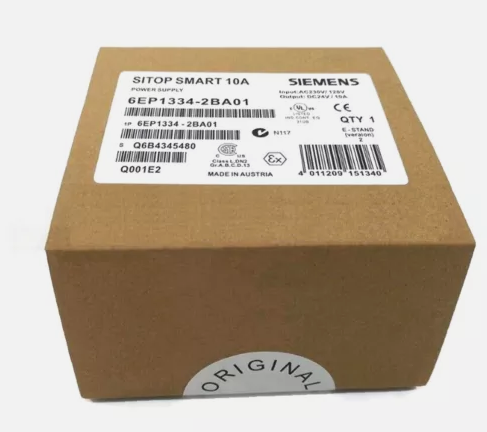

Siemens 6EP1334-2BA01 SITOP SMART Güç Kaynağı, 120/230VAC, 10A/24VDC, PFC'li
SITOP SMART 24 V/10 A, WITH PFC
SITOP smart 240 W Stabilized power supply input: 120/230 V AC, output: DC 24 V/10 A Version with PFC
https://www.yapmuh.com/urun-kategori/siemens
SITOP SMART 240 W STABILIZED POWER SUPPLY
INPUT: 120/230 V AC OUTPUT: 24 V DC / 10 A PFC
VERSION
Technical specifications
Product SITOP smart
Power supply, type 24 V/10 A
Input
Input 1-phase AC
Supply voltage / 1 / at AC / nominal value 120 V
Supply voltage / 2 / at AC / nominal value 230 V
Voltage range
• Note Set by means of selector switch on the device
Input voltage / 1 / at AC 85 … 132 V
Input voltage / 2 / at AC 170 … 264 V
Wide-range input No
Overvoltage resistance 2.3 × Vin rated, 1.3 ms
Mains buffering at Iout rated, min. 20 ms
Mains buffering at Vin = 93/187 V
Rated line frequency 50 / 60 Hz
Rated line range 47 ... 63 Hz
Input current / at nominal level of the input voltage 120 V 4.1 A
Input current / at nominal level of the input voltage 230 V 2 A
Switch-on current limiting (+25 °C), max. 65 A
Duration of current limiting / at 25 °C / typical 3 ms
6EP1334-2BA01
Page 1/ 10/22/2012
subject to modifications
4
© Copyright Siemens AG 2012
I²t, max. 3.3 A²·s
Built-in incoming fuse T 6.3 A/250 V (not accessible)
Protection in the mains power input (IEC 898) Recommended miniature circuit breaker: from 10 A, characteristic C
Output
Output Controlled, isolated DC voltage
Rated voltage Vout DC 24 V
Total tolerance, static ± 3 %
Static mains compensation, approx. 0.1 %
Static load balancing, approx. 0.5 %
Residual ripple peak-peak, max. 150 mV
Residual ripple peak-peak, typ. 50 mV
Spikes peak-peak, max. (bandwidth: 20 MHz) 240 mV
